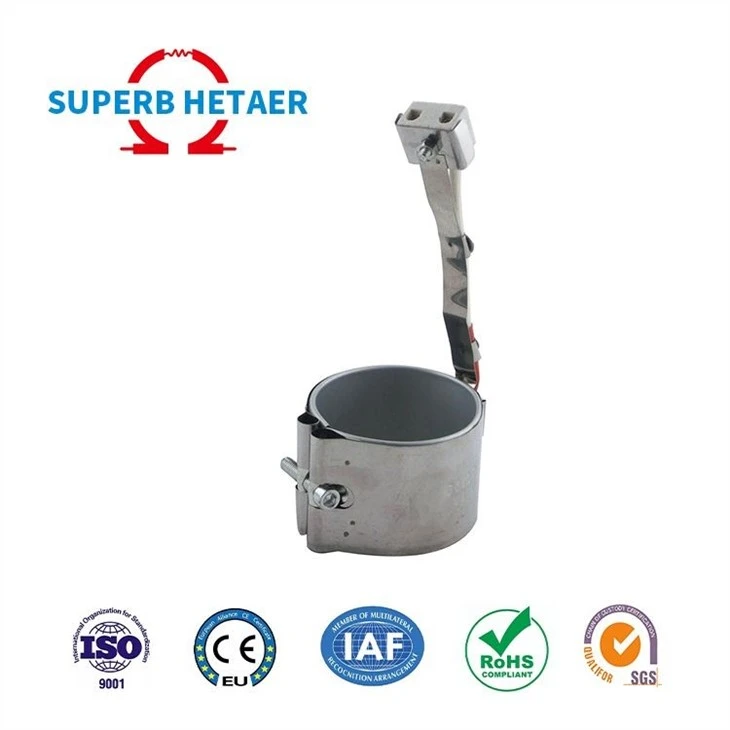

Professional Industrial Band Heating Element Rhaub

Khoom piav qhia

Kev cob qhia kev lag luam band cua sov lub tshuab rhaub yog tsim nrog lub mica core qhov txhab nrog hlau. Tom qab ntawd lub core yog khoov rau hauv ib lub voj voog. Cov txhuas txuas txuas ua ntej qhov kawg txheej txheej txuas mus ua kom tiav lub rhaub. Peb lub tshuab cua sov Mica Band tuaj yeem ntsia ncaj qha mus rau hauv lub taub rhaub dej yam tsis tas yuav tsum tau tshem tawm lub rhaub

Cov cua sov no muaj cov ntaub ntawv etched nyob nruab nrab ntawm cov khaubncaws sab nraud povtseg ntawm mica hloov tau thiab ua haujlwm ntawm qhov kub thiab txias nrog lub sijhawm teb ceev hauv kev lag luam xws li tub rog mus rau semiconductor mus rau kev pabcuam zaub mov. Mica heaters yog kev cai tsim los kom haum rau qhov chaw nkhaus hauv ntau daim duab thiab ntau thiab tsawg.

Kev cob qhia cov khoom siv hluav taws xob cua sov yog feem ntau siv thaum twg xav tau cua sov nyob ib puag ncig thaj tsam ntawm cov yeeb nkab, raj lossis cylindrical hlab ntsha. Lawv muab cov cua sov ua kom nrawm nrawm uas ntau qhov kev lag luam, tshwj xeeb tshaj yog cov yas, pom zoo rau lawv cov kev xav tau. Muaj peb yam tseem ceeb ntawm lub tshuab cua sov: mica, ceramic thiab ntxhia-insulated.

Band heaters yog lub nplhaib zoo li cov khoom siv cua sov uas clamp nyob ib ncig ntawm lub cylindrical keeb. Thaum tshav kub kub hloov los ntawm band heaters tshwm sim los ntawm txoj kev conductive. Feem ntau cov cua sov band clamp nyob ib ncig ntawm lub cheeb ntawm lub cylindrical lub caij thiab cua sov lub caij los ntawm sab nraud.

Qhov zoo

1.The sheath ntawm tus nqi qis Mica band rhaub yog xeb kuj.

2.High class Nickel Chrome ribbon yog siv.

3.Maximum fais fab: 3w / cm2 (s.steel), 4.5w / cm2 ( tooj dag), 6.5w / cm2 (ceramic rwb thaiv tsev)

4.Kev ua haujlwm kub siab tshaj plaws ntawm 600 degree centigrade

5.Axial, Radial & Tangential terminals muaj

6.Thermocouple qhov tuaj yeem muab tau raws li tus neeg siv khoom xav tau

Khoom siv

1.Kev txhaj tshuaj molding / Extrusion tshuab

2.Rubber Moulding / Yas Txheej Txheem Machinery

3.Tooling & Tuag taub hau

4. Ntim Machinery

5.Shoe Manufacturing Machinery

6.Test Equipment / Laboratory Equipment

7. Khoom noj khoom haus txheej txheem Machinery

8.Nruas uas muaj cov khib nyiab lossis kua dej

9. Lub tshuab nqus tsev twj thiab lwm yam ...

FAQ

Q: Peb puas tuaj yeem tau txais qee qhov qauv? Puas muaj nqi?

Yog, pub dawb cov ntawv uas twb muaj lawm, koj yuav tsum them tus nqi xa khoom.

Q: Peb tuaj yeem tau txais cov lus hais li cas?

Tiv tauj peb nrog specification: xws li cov khoom, tsim, loj, puab, xim, kom muaj nuj nqis, nto tiav, thiab lwm yam. Q: Lub sij hawm ua lag luam thiab lub sij hawm them nqi yog dab tsi?

Tus nqi tsawg dua $ 1000, 100 feem pua ​​​​ them ua ntej ntau lawm, ntau tshaj $ 1000 tuaj yeem sib tham!

T / T, Western Union, PAYPAL thiab lwm yam.

Q: Lub Thermolator ua haujlwm li cas?

Cov pwm yog rhuab thiab khaws cia ntawm qhov kub thiab txias uas siv cov thermolators lossis cov cuab yeej tswj qhov kub thiab txias uas siv cov dej txias (dej lossis roj) los ntawm cov pwm. Peb cov cuab yeej tswj qhov kub thiab txias tau ua haujlwm rau feem ntau ntawm cov ntawv thov kev lag luam thiab tau raug pov thawj los tswj cov txheej txheem kub ntawm 20 degree F txog 650 degree F.

Q: Yuav ua li cas txhaj moulds rhuab?

Cov ntaub ntawv txhaj tshuaj heats txhaj pwm nyob rau hauv cycles. Lub tshav kub yog tso tawm los ntawm tshav kub hloov mus rau lub circulating tshav kub hloov nruab nrab ntawm qhov chaw ntawm lub kub tswj channel, qhov twg nws yog dissipated los ntawm thermal conduction nyob rau hauv cov khoom thiab hlau ntawm pwm (dej los yog roj).

Q: Kuv yuav xaiv lub pwm kub tswj li cas?

Cov pwm kub tswj tau tuaj yeem muab qhov txaus txaus txaus thiab siab yog tias qhov chaw sib koom ua ke hauv qab kab. Cov pwm kub tswj tsis tuaj yeem muab cov nqi txaus txaus thiab lub siab yog tias qhov chaw sib koom ua ke nyob saum kab.

Q: Dab tsi yog lub tshuab cua sov rau kev txhaj tshuaj molding?

Hauv cov khoom siv yas, mica band heaters feem ntau siv rau tshuab moulding, txhaj tshuaj molding, thiab extrusion. Txhawm rau hloov cov ntsiab lus los ntawm cov khoom hauv lub xeev mus rau cov kua molten, lub rhaub yog muab tso rau hauv cov kav dej cylindrical lossis lub thoob.
