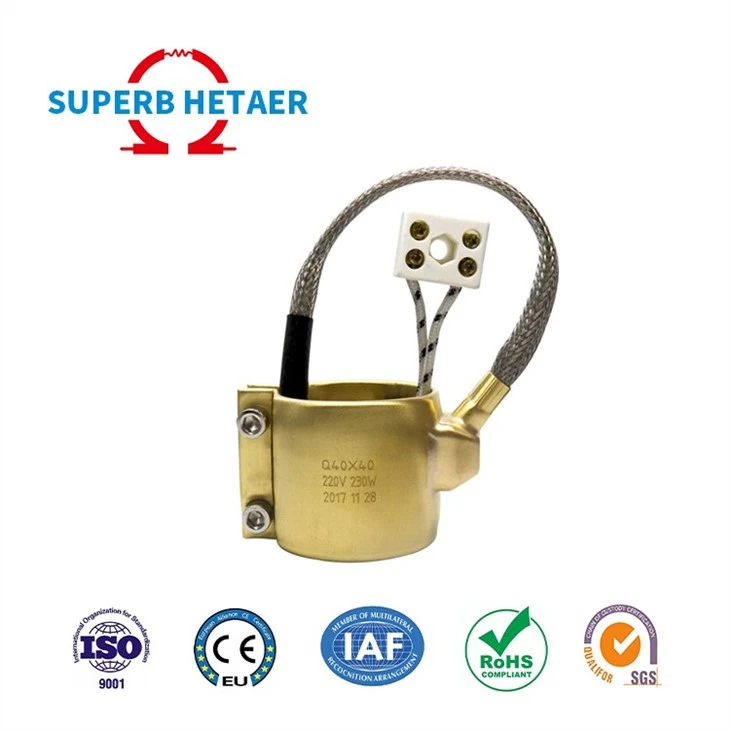

Brass Nozzle AC 110V 25mm Band Rhaub

Brass Nozzle AC 110V 25mm Band Rhaub yog kiag li tiv thaiv cov neeg ua haujlwm sab nraud xws li cov yas yaj. Lawv tiv taus heev rau hnav thiab shocks.High watt-density ib square centimeter tso cai rau ceev thiab nyab xeeb ncav cuag qhov xav tau ua haujlwm kub. Brass sealed nozzle heaters raug xa mus rau ...

Xa kev nug

Hauj lwm lawm

Brass Nozzle AC 110V 25mm Band Rhaubyog kiag li tawm tsam lwm tus neeg sawv cev xws li melted plastics. Lawv tiv taus heev rau hnav thiab shocks.High watt-density ib square centimeter tso cai rau ceev thiab nyab xeeb ncav cuag qhov xav tau ua haujlwm kub. Brass sealed nozzle heaters raug xa mus rau lub siab tsis tshua muaj siab uas ua kom muaj kev rwb thaiv tsev siab, zoo heev thermal pauv, tsis muaj cov voids sab hauv, zoo kawg nkaus kev sib cuag cheeb tsam rau qhov zoo tshaj plaws thiab cov cua kub hloov mus rau txhua qhov ntawm lub nozzle.

Txoj kab uas hla	25mm - 150 hli
Qhov siab	25mm - 70 hli
Hluav taws xob cua sov hlau	NiCr2080
Rwb thaiv tsev	Mica
Sheath	tooj dag
Max ua haujlwm kub	500 degree
Kev tiv thaiv cua sov	Ua hauv Hom "J" (lossis) "K" Thermocouple
Hauv av hlau	Xaiv tau

Khoom siv ntawm tooj dag Nozzle AC 110V 25mm Band Rhaub

- Lub cev tooj dag
- Nickel-Chrome 80/20 resistive winding
- Nruam mica rwb thaiv tsev
- Saj zawg zog bipolar pub txhuas ntxiv rau lub ntiaj teb hlau
- Teflon-fibreglass insulated nickel conductors, nrog hlau braiding tiv thaiv Max ua hauj lwm kub yog 500ºC

Cov yam ntxwv ntawm Insulated band heaters

- Muaj nyob rau hauv Premium, Economy & Power Saving Options Muaj
- Txuag Zog nrog kev txhim kho cua sov kom txog li 30 Watts ib square inch.
- Superior Thermal Conductivity thiab tuag hluav taws xob lub zog.
- Muaj nyob rau hauv ntau yam Lead Terminations & Clampings

Yuav xaj li cas? Pls muab cov ntaub ntawv no:

1.Vottage: 380V, 240V, 220V, 200V, 110V thiab lwm yam tuaj yeem kho.
2.Wattage: 80W, 100W, 200W, 250W thiab lwm yam tuaj yeem hloov kho.
3.Heater In Diameter: 20mm, 30mm, 40mm, 60mm, 80mm, 100mm thiab lwm yam tuaj yeem kho.
4.Heater Qhov siab: 30mm, 40mm, 60mm, 80mm, 100mm thiab lwm yam tuaj yeem kho.
5.Txawm hais tias koj xav tau qhov los yog tsis. Yog tias muaj, nws yog qhov tsim nyog los muab qhov 'ntau, qhov loj thiab txoj haujlwm.
6.Termination Stype: ntsia hlau davhlau ya nyob twg, ntsaws davhlau ya nyob twg, ceramic thaiv davhlau ya nyob twg los yog txhuas hlau davhlau ya nyob twg.
