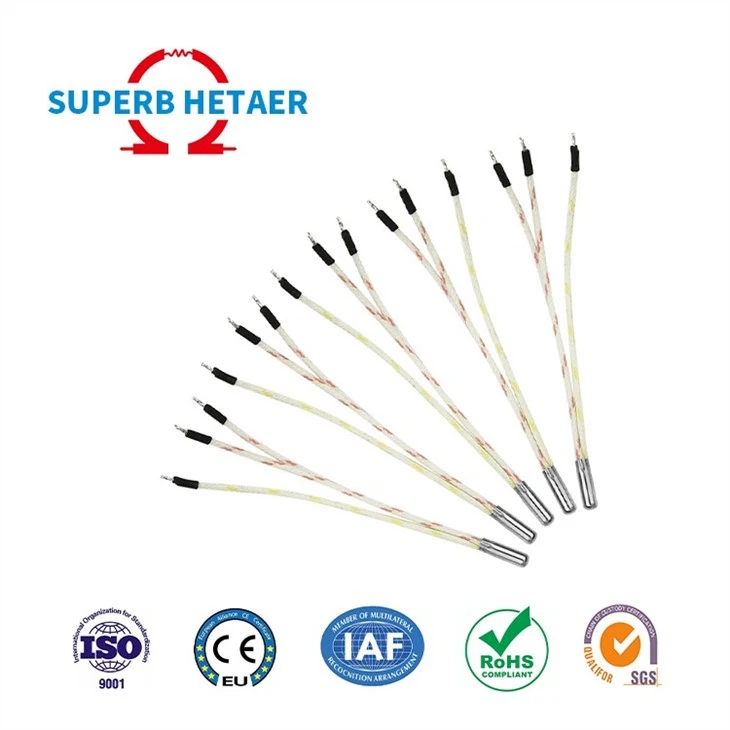

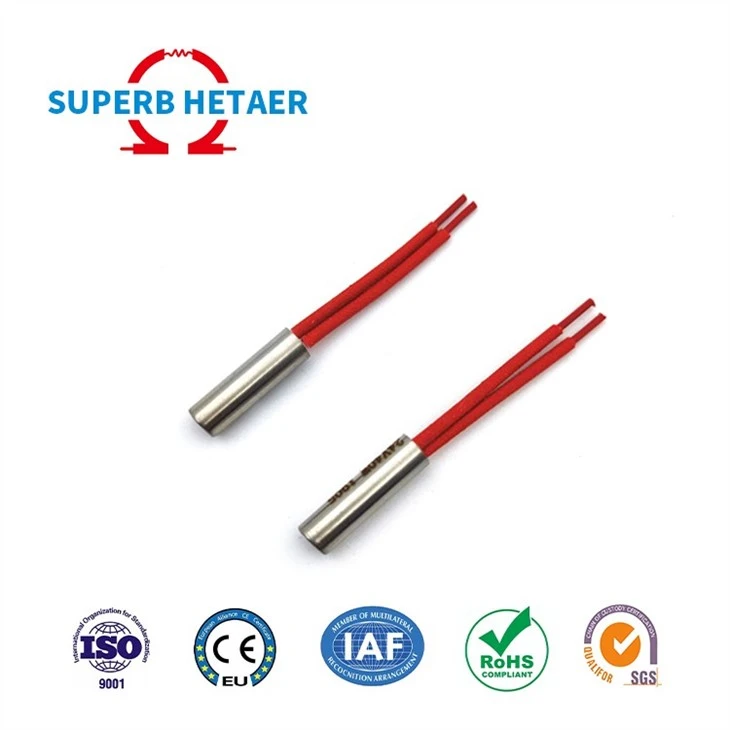

3D Printer Heater Cartridge Resistance

3D Printer Heater Cartridge Resistance yog qhov tseem ceeb tshaj plaws cua sov uas siv hauv 3D tshuab luam ntawv. Technology: 3D luam ntawv yog raws li ib yam ntawm cov khoom siv technology, yog raws li nyob rau hauv peb seem tsim qauv, txheej thiab nc tsim los ntawm lub software, siv ib tug laser beam, kub nozzle, lub teeb curing txoj kev xws li cov hlau hmoov, ceramic hmoov, yas. , photosensitive resin khoom pawg los ntawm cov txheej txheem txheej txheej txheej txheej tshuab, thaum kawg tsim cov khoom siv lub cev. Cov thev naus laus zis muaj cov ntawv thov hauv cov hniav nyiaj hniav kub, khau, tsim kev lag luam, architecture, engineering thiab kev tsim kho (AEC), automotive, aerospace, kho hniav thiab kev kho mob kev lag luam, kev kawm, geographic information systems, civil engineering, phom, thiab lwm yam. Cov cuab yeej siv cua sov ntawm lub tshuab luam ntawv 3D uas twb muaj lawm tsis tuaj yeem sib xyaw ua ke thiab ua kom sov cov khoom luam tawm, uas cuam tshuam rau kev luam ntawv. Tsis tas li ntawd, cov phab ntsa sab hauv ntawm cov khoom siv cua sov yog ib qho yooj yim rau kev ua raws li cov ntaub ntawv luam tawm, ua rau cov khoom pov tseg ntawm cov ntawv luam tawm thiab nce nqi tsim khoom.

Kev cai specification rau Cartridge rhaub:

Feem ntau muaj ob qhov chaw ntawm lub tshuab luam ntawv 3D uas siv cov cua sov: lub nozzle thiab lub txaj kub.

Superbheater muab 3D tshuab luam ntawv Heater Cartridge Resistance ob qho tib si rau lub nozzle thiab lub txaj kub.

Kev ua haujlwm kub ntawm lub nozzle feem ntau yog nruab nrab ntawm 180 degree thiab 250 degree. Los ntawm cua sov ib daim hlau (txhuas lossis tooj liab) mus rau qhov ntsuas kub, cov hlau yog melted indirectly. Lub hwj chim tsis loj ntawm no, tab sis cov cua kub efficiency siab.

Qhov kev ua haujlwm dav dav ntawm lub txaj kub yog nruab nrab ntawm 40 degree thiab 80 degree. Los ntawm cua sov cov phaj hlau lossis iav phaj txuas nrog lub txaj kub, hauv qab ntawm cov ntawv luam tawm yog khaws cia ntawm qhov kub thiab txias, uas tsis yooj yim rau shrink thiab ua rau warping. Vim tias qhov cua sov ntawm lub txaj kub yog qhov loj thiab cov cua sov dissipation yog qhov hnyav, lub zog cua sov yuav tsum loj heev.

Lub nozzle cua sov pas nrig feem ntau yog siv, lub hwj chim yog 40-50W, ua hauj lwm voltage yog 24V;

Lub txaj kub cua sov feem ntau muaj peb hom ntawv cua sov, ib qho yog luam tawm ncaj qha rau ntawm PCB board, kev siv tooj liab ntawv ci cua sov; Ib qho yog siv PI zaj duab xis encapsulated tooj liab ntawv ci cua sov; Thiab silicone roj hmab cua sov phaj; Peb hom no muaj txiaj ntsig zoo, lub zog feem ntau yog ntau tshaj 100W; Qhov voltage kuj yog 24 volts
