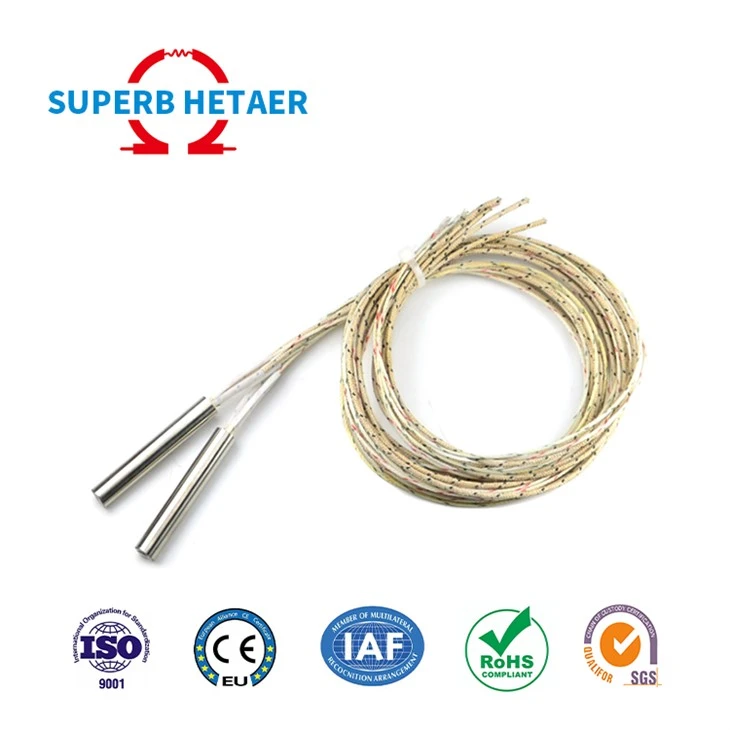

Industrial qws Cartridge rhaub Resistance Pencil rhaub

Product Description

Factory Custom Industrial Rod Cartridge rhaub rau Mould Immersion Cua sov

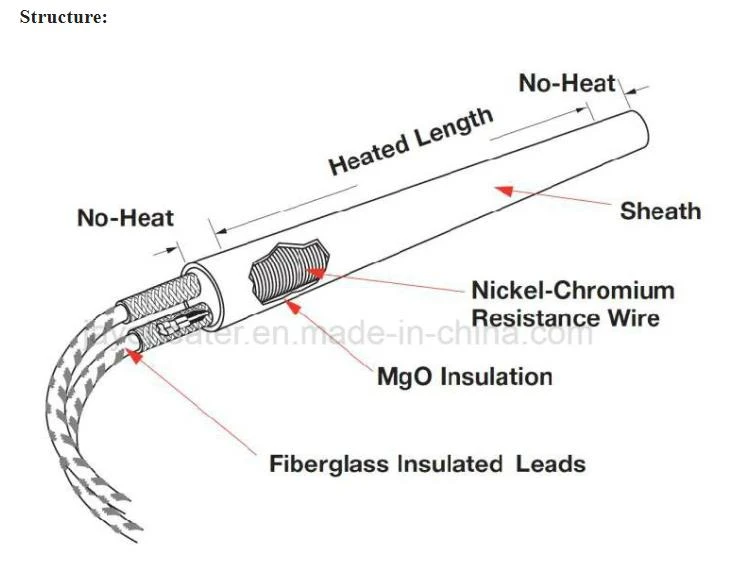

Cartridge rhaub yog tsim los ntawm cylindrical stainless hlau raj thiab yog li muab kev tiv thaiv corrosion siab. Cov cua sov xaim sab hauv uas yog mus rau lub hauv paus ceramic.

Tus naj npawb ntawm cov coils txawv nyob ntawm lub zog. thiab muab ib qho zoo sib xws ntawm cov cua sov, uas ua rau kom lub neej ntev ntawm lub rhaub thiab tiv thaiv oxidation ntawm lub cua sov hlau txawm nyob rau hauv high kub.

Cov khib nyiab, kua, thiab roj yuav tsum tau muab rhaub los ntawm lub tshuab cua sov, xa cov cua kub sai sai yog tias tus tsim cov cua sov (lub cartridge) nyob rau hauv kev sib cuag ncaj qha nrog lub dab dej kub (txhua yam khoom, kua, lossis roj). Dav siv rau kev tsim khoom yas thiab roj hmab hauv kev lag luam tsheb lossis hauv kev lag luam ua zaub mov, thiab lwm yam lawv kuj muaj nyob rau hauv cov tshuaj, hluav taws xob, khoom siv kho mob, packing thiab nuclear industries.



Sib nrug los ntawm peb cov txheej txheem dav dav peb kuj tsim thiab tsim cov cartridge rhaub raws li koj qhov kev thov tshwj xeeb.

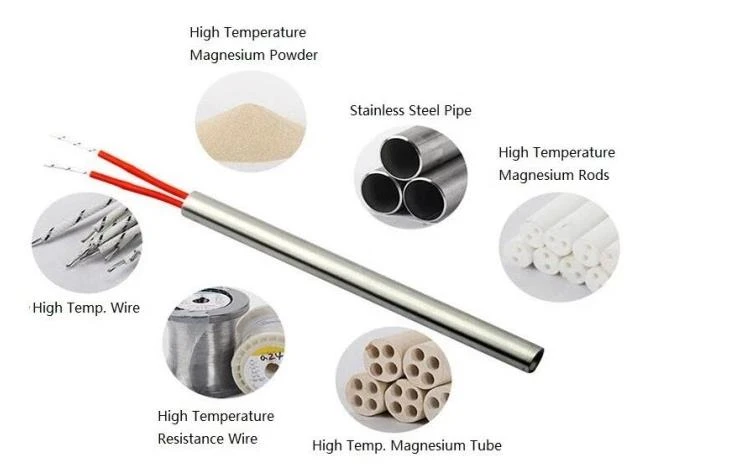

Cartridge rhaub yog ua los ntawm crimped-on los yog swaged-hauv kev tsim kho uas muaj nyob rau hauv qib high-qib nickel chromium kuj hlau qhov txhab nyob ib ncig ntawm ib tug zoo MgO core uas yog nyob rau hauv ib tug stainless hlau casing.

Cartridge rhaub yog siv rau ob peb lub cua sov hlau qhov chaw thiab tuaj yeem haum nrog threaded bushings rau cov kua cua sov rau qee yam kev siv. cartridge rhaub yuav ncav cuag hlau kub txog li 760 degree nrog rau cov khoom tsim nyog, watt ceev, thiab haum xaiv.

Cartridge rhaub kev ua haujlwm muaj peev xwm:

Qhov kub txog li 1400 ° F (760 ° C) ntawm alloy 800 sheath

Watt ceev mus txog 40W / cm2

Qhov siab tshaj plaws voltage mus txog 480VAC, qhov tsawg kawg nkaus voltage mus txog 5VAC

Yam tsawg kawg nkaus txoj kab uas hla mus txog 3 hli

Qhov siab tshaj plaws txoj kab uas hla mus txog 35mm

Cov txiaj ntsig ntawm cartridge rhaub:

Yooj yim thiab pheej yig rau nruab

Tsim nrog cov ntaub ntawv thawj-chav kawm

Maximized tshav kub hloov

Yooj yim tswj

sib xws kub

Oxidation thiab corrosion resistant

Durable

CE tau lees paub los ntawm TÜV Rheinland

Cartridge rhaub technical nthuav dav:
1. Tube txoj kab uas hla: Φ3mm-Φ30mm
2. Tube Khoom: SS304; SS316, SS321, NICOLOY800 thiab lwm yam
3. Rwb thaiv tsev khoom: High-purity Mgo
4. Resistant hlau yam: Ni-Cr los yog FeCr
5.Lead Connection Options: Crimped los yog Swaged leads
6.Lead thiab hom kev sib txuas ua ke, 10 "Fiberglass Standard (xaiv xaiv, silicone kub fiberglass

Cartridge rhaub sheath khoom	SS304.321.316L, Incoloy800.840, Titanium
Cov khoom siv rwb thaiv tsev	High-purity MgO
Kev tiv thaiv	Ni-Cr los yog FeCr
Qhov siab tshaj plaws voltage	480VAC ua
Wattage ceev	siab / nruab nrab / qis (5-40w/cm2)
Wattage kam rau ua	kam rau ua:+5% -10%
Dimensional	Txoj kab uas hla: Min. ib: 3mm
Length ntawm cartridge rhaub:	Customized
Cov kev xaiv coj	Crimped-on / Swaged-hauv
Lead hom	Swage fiberglass rwb thaiv tsev nickel hlau (750 degree)
	Crimp PTFE kab (250 degree) Crimp
	silicon insulated hlau (200 degree)
	Crimp fiberglass rwb thaiv tsev nickel hlau (450 degree)
Sab hauv	Hom J lossis K muaj thermocouple
Cov kev xaiv tiv thaiv txhuas	Stainless hlau braid
	Stainless hlau saj zawg zog hose
lwm txoj kev xaiv	Khoov cua sov, hauv qhov tsis muaj cua sov, mus txog 90 degree kaum
	mounting flange

Cartridge rhaub Feature:
Common cartridge tuaj yeem muab faib ua:
1. Muaj zog ceev ceev(kub thaj tsam sufuce zog 10 ~ 25w / cm2)
Ua haujlwm kubTsawg dua lossis sib npaug li 450 degrees.
2. Nruab nrab, qis zogdensity (kub cheeb tsam sufuce zog 5 ~ 11 / cm2)
ua haujlwm kubTsawg dua los yog sib npaug li 300 degrees
Votage:12 ~ 250V (los yog raws li xav tau)
Kev tsim kho siab
Kev tsim kho zoo stainless hlau muab kev tiv thaiv ntev ntev txawm tias nyob rau hauv qhov chaw muaj kev lag luam zoo tshaj plaws
Tiv thaiv nrog stainless hlau sheath, lawv cov watt ceev tuaj yeem ncav cuag 50 W / cm2 thiab lawv cov haujlwm kub tuaj yeem nce mus txog 800 degree.

Cartridge rhaub Factors:
Thov xav txog cov hauv qab no txhawm rau txhawm rau xaiv lub tshuab hluav taws xob zoo.
Ua haujlwm kub
Watt ceev ntawm cov khoom cua sov
Sheath khoom (corrosive los yog tsis corrosive)

Kub ntawm corrodent

Degree ntawm aeration ntawm exposed corrodent

Kev nrawm ntawm corrodent

Cartridge rhaub Dimension Data:
Cov lus no qhia qhov tsawg kawg nkaus / siab tshaj sheath lengths rau muaj diameters.

Txoj kab uas hla			Ntev
Ib txwm	Qhov tseeb		Min		Max
hauv.	hauv.	mm	hauv	mm	hauv	mm
1/8	0.122	3.1	7/8	22.2	12	305
1/4	0.246	6.3	7/8	22.2	36	915
3/8	0.371	9.4	7/8	22.2	48	1220
1/2	0.496	12.6	7/8	22.2	60	1520
5/8	0.621	15.8	1	25	72	1830
3/4	0.746	18.9	1	25	72	1830
1	0.996	25.3	1 1/4	32	72	1830

Qhia pom qhov siab tshaj plaws sheath ntev; txawm li cas los xij, qhov ntev ntev tuaj yeem muaj.

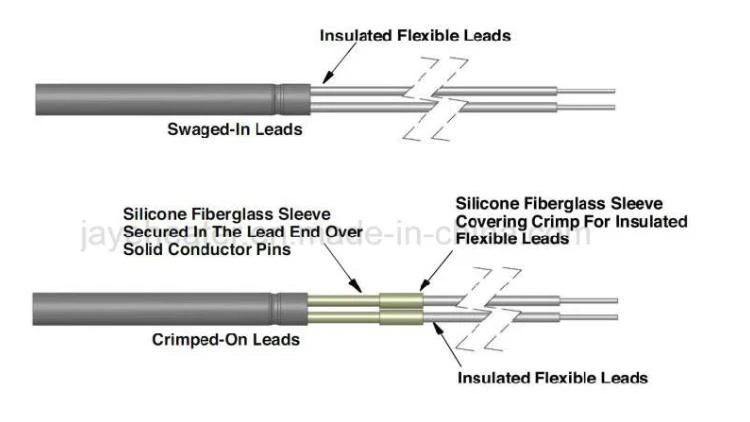

Termination Options ntawm Cartridge rhaub

Swaged-hauv Flexible leads

Swaged-nyob rau hauv saj zawg zog leads, nrog silicone-fiberglass rwb thaiv tsev, yog pom zoo rau cov kev siv nyob rau hauv uas cov leads yuav tsum tau khoov rau ntawm qhov chaw tawm ntawm lub rhaub.
Tshwj tsis yog ntev ntev tau teev tseg, 250mm (10 nyob rau hauv.) leads yog muab.
Heaters 150mm (6 in.) lossis luv dua feem ntau muaj 6 hli (1/4 in.) tsis muaj cua sov seem. Cov cua sov txog li 250mm (10 in.) xav tau 25mm (1 in.) tsis muaj cua sov seem. Cov cua kub ntau dua 250mm yuav xav tau ntau tshaj 25mm tsis muaj cua sov seem. Txhawm rau xaj, thov qhiaswaged-hauv hloov pauv tau.

Lub kaum sab xis coj

Txoj cai lub kaum sab xis yog siv nyob rau hauv daim ntawv thov nrog ib tug high degree ntawm flexing thiab thaum qhov chaw txwv yog ib qho tseem ceeb. Cov hlau lead tawm ntawm lub kaum sab xis ntawm 90 degree los ntawm sab ntawm lub tshuab cua sov.


Lub kaum sab xis raj tej zaum yuav tsim nyog rau qee yam kev tsim kho.Rau kev txiav txim, qhia meejtxoj cai kaum cojthiab txhuas ntev.

Txoj kab uas hla mm	Min Tsis Kub Kub Length mm (in.)
6.5	15 (9/16)
8.0	15 (9/16)
10	17 (2/3)
12.5	18 (11/16)
16.0	20 (3/4)
20.0	21 (13/16)

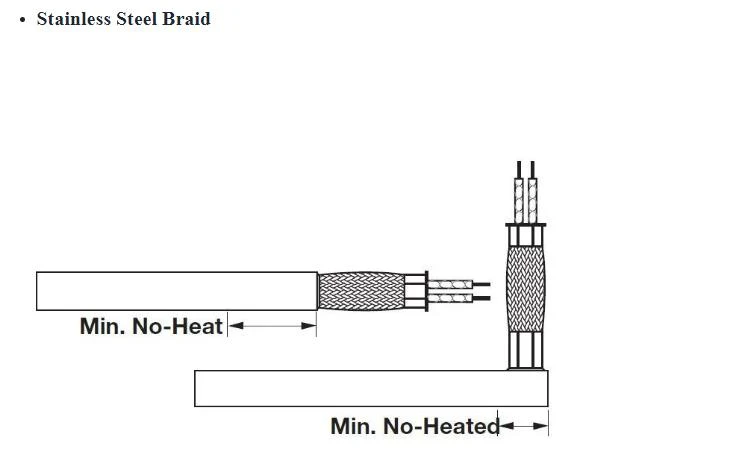

Stainless hlau braid yog tsim los tiv thaiv cov hlau lead los ntawm kev puas tsuaj rau cov npoo ntse.
Thaum cov hlau lead tawm ncaj tawm, lub braid yog swaged rau hauv qhov tsis muaj cua sov ntawm lub rhaub. Thaum cov hlau lead tawm ntawm lub kaum sab xis, lub crimp connector yog siv los txuas cov braids.
Tshwj tsis yog tias tau teev tseg, cov hlau lead yog 250 mm (10 in.) thiab lub braid yog 200 mm (8 in.) ntev. Txhawm rau xaj, qhia ib yamncaj los yog txoj cai kaum stainless hlau braid, txhuas ntev thiab tsis muaj cua sov seem.

Txoj kab uas hla	Min. Tsis Muaj Kub Ntev
	Ncaj	Lub kaum sab xis mm
mm
	mm (hauv.)		(hauv.)
6.5	30 (1 1/8)		N/A
8.0	30 (1 1/8)	15	(9/16)
10.0	30 (1 1/8)	17	(2/3)
12.5	30 (1 1/8)	18	(11/16)
16.0	30 (1 1/8)	20	(3/4)
20.0	30 (1 1/8)	21	(13/16)

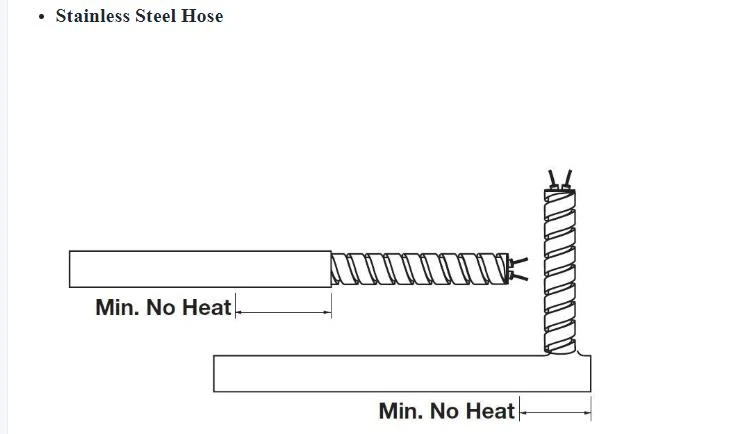

Stainless hlau hose muab kev tiv thaiv zoo tshaj plaws tiv thaiv kev puas tsuaj los ntawm cov npoo ntse lossis cov khoom siv abrasive. Nws kuj muab kev yooj yim ntawm kev tuav thiab xaim hauv qhov chaw abrasive.
Thaum cov hlau lead tawm ntawm lub kaum sab xis mus rau lub rhaub, lub hose yog nyiaj soldered rau lub sheath. Tshwj tsis yog tias tau teev tseg, cov hlau lead yog 250 mm (10 in.) ntev thiab lub hose yog 200 mm (8 in.) ntev. Kom xaj, qhiastainless steel hose, txhuas ntev thiab tsis muaj cua sov seem.

	Min. Tsis Muaj Kub Ntev
Txoj kab uas hla	Ncaj	Lub kaum sab xis mm
mm	mm (hauv.)		(hauv.)
6.5	30 (1 1/8)		N/A
8.0	30 (1 1/8)	15	(9/16)
10.0	30 (1 1/8)	17	(2/3)
12.5	30 (1 1/8)	18	(11/16)
16.0	30 (1 1/8)	20	(3/4)
20.0	30 (1 1/8)	21	(13/16)

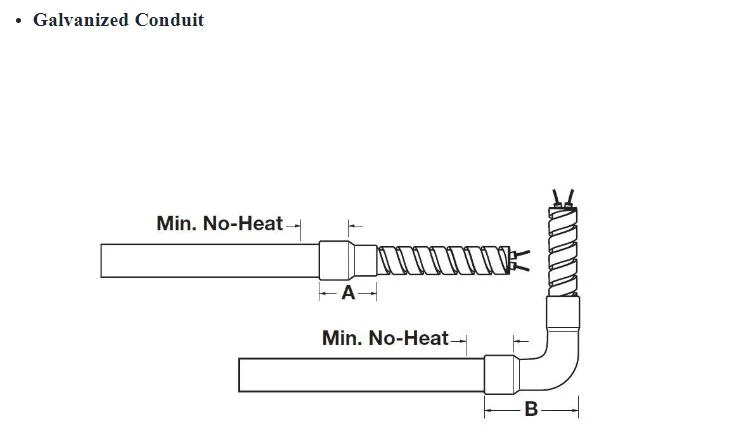

Galvanized conduit sib npaug stainless hlau hose hauv nws cov kev tiv thaiv puas.
Cov kav dej yog txuas nrog lub luj tshib 90 degree tooj liab txuas, uas sib tshooj ntawm lub tshuab cua sov. Tshwj tsis yog tias tau teev tseg, 200 mm (8 in.) conduit yog muab, cov hlau lead yog 50 mm ntev dua li cov kav dej. Kom xaj, qhiagalvanized kav, txhuas ntev thiab tsis muaj cua sov seem.

	Min			Galvani
Diam eter		Dimensio n A	Dimensio n B	zej
	Tsis Kub
				kav dej
	Ntev
mm		mm (hauv.)	mm (hauv.)	O.D.
	mm (hauv.)
				mm (hauv.)
6.5	12(7/16)	22(7/8)	29(1 1/8)	10(3/8)
8.0	12(7/16)	22(7/8)	29(1 1/8)	10(3/8)
10.0	12(7/16)	22(7/8)	29(1 1/8)	10(3/8)
12.5	12(7/16)	28(1 1/8)	30(1 3/16)	14(1/2)
16.0	12(7/16)	28(1 1/8)	34(1 5/16)	14(1/2)
20.0	12(7/16)	29(1 1/8)	36(1 7/16)	16(5/8)

Ceramic Bead rwb thaiv tsev

Ceramic hlaws rwb thaiv tsev tiv thaiv cov hlau lead los ntawm qhov kub thiab txias ambients siab tshaj 450 degree (840 degree F). Cov hlaws dai haum rau cov khoom siv hluav taws xob thiab txuas ntxiv ntev txaus kom mus txog qhov chaw txias dua uas cov xaim hloov pauv tuaj yeem txuas tau. Kom xaj, qhiaceramic hlaws daithiab ntev, thiab ntxiv txhuas ntev.

Flanges rau cartridge rhaub

Stainless hlau flanges yog ib txoj hauv kev yooj yim mounting nrog rau txoj hauv kev los tso lub rhaub hauv ib daim ntawv thov. Flange style raws li cov neeg siv khoom xav tau. Cov flanges no tuaj yeem nyob rau hauv txhua qhov tsis muaj cua sov ntawm lub tshuab cua sov. Kom xaj, qhiaflange, flange loj thiab qhov chaw.

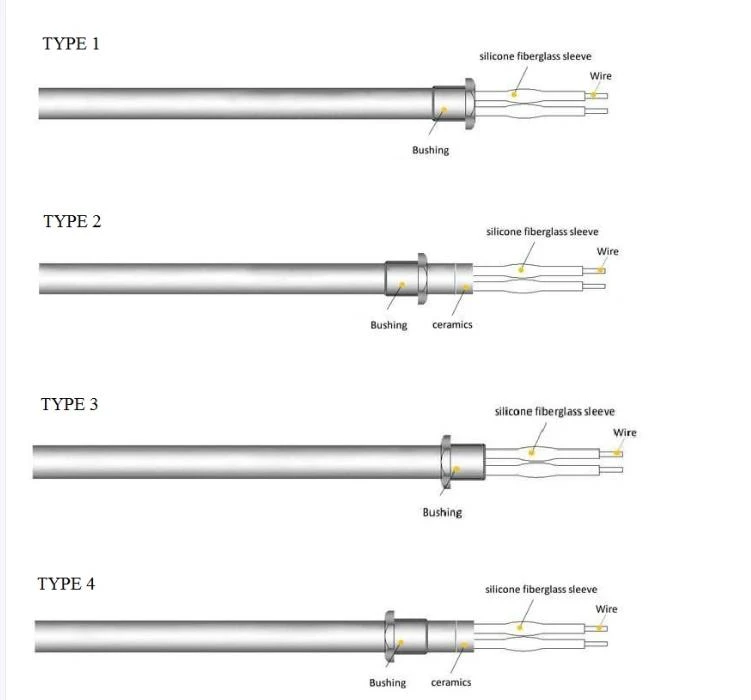

Immersion Cartridge rhaub:

(Rau cov ntawv thov ua kua rau cua sov, siv tooj dag lossis stainless hlau threaded bushing.)



Qhov loj ntawm threaded bushing yog matched raws li cov yeeb nkab txoj kab uas hla. Cov specifications ntawm threaded bushing muaj xws liG xov, NPT xov, BSPP xov, lwm.
Thov hu rau peb rau kev txiav txim tshwj xeeb.

Yuav ua li cas rau nruab cartridge rhaub

ua ib lub qhov nyob rau hauv seem uas yuav tsum tau rhuab

ream ib lub qhov du rau kev sib cuag thiab kom zoo dua tshav kub hloov

txuas lub qhov los ntawm ntu kom lub tsev tuaj yeem raug tsav tawm yog tias koj yuav tsum tau tshem nws.

Yog hais tias ua ib lub qhov los ntawm lub qhov yog tsis yooj yim sua, nce qhov loj ntawm lub qhov tsis pub tshaj qhov tolerances

Txo qhov kev vibration thiab flexing ntawm cov hlau lead ua kom ntev kev pab cuam lub neej

tiv thaiv kev sib kis ntawm cov kua los ntawm kev tiv thaiv qhov kawg ntawm lub rhaub

Thaum xaj Cartridge Heaters, thov qhia cov ntaub ntawv hauv qab no:-
1. Hom Cartridge Heater (thov xa mus rau Kev Xaiv Kev Txiav Txim Siab).
2. Txoj kab uas hla ntawm Cartridge rhaub.
3. Zuag qhia tag nrho ntev rau ib tug ncaj Cartridge rhaub.
4. Wattage & Voltage
5. Lead hom (iav fiber ntau / PTFE) & txhuas ntev.
