Me Cartridge rhaub

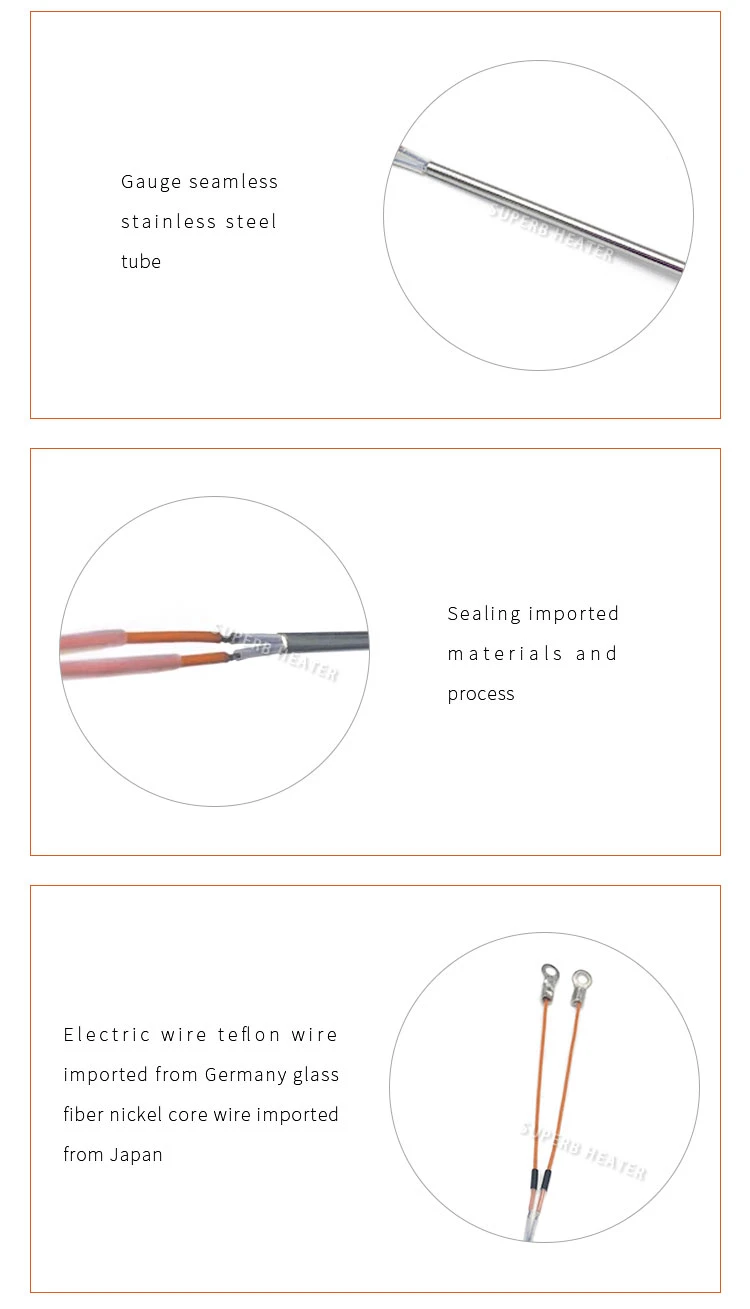

Cov qauv ntawm lub tshuab hluav taws xob me me (cov qauv nrov tshaj plaws) feem ntau yog tsim los ntawm 5 qhov chaw: insulator, sealing khoom, lead-out pas nrig, muab tub lim, cua sov hlau, hlau sheath, thiab davhlau ya nyob twg. Tus naj npawb ntawm cov coils txawv nyob ntawm lub zog. thiab muab kev faib khoom zoo sib xws ...

Xa kev nug

Hauj lwm lawm

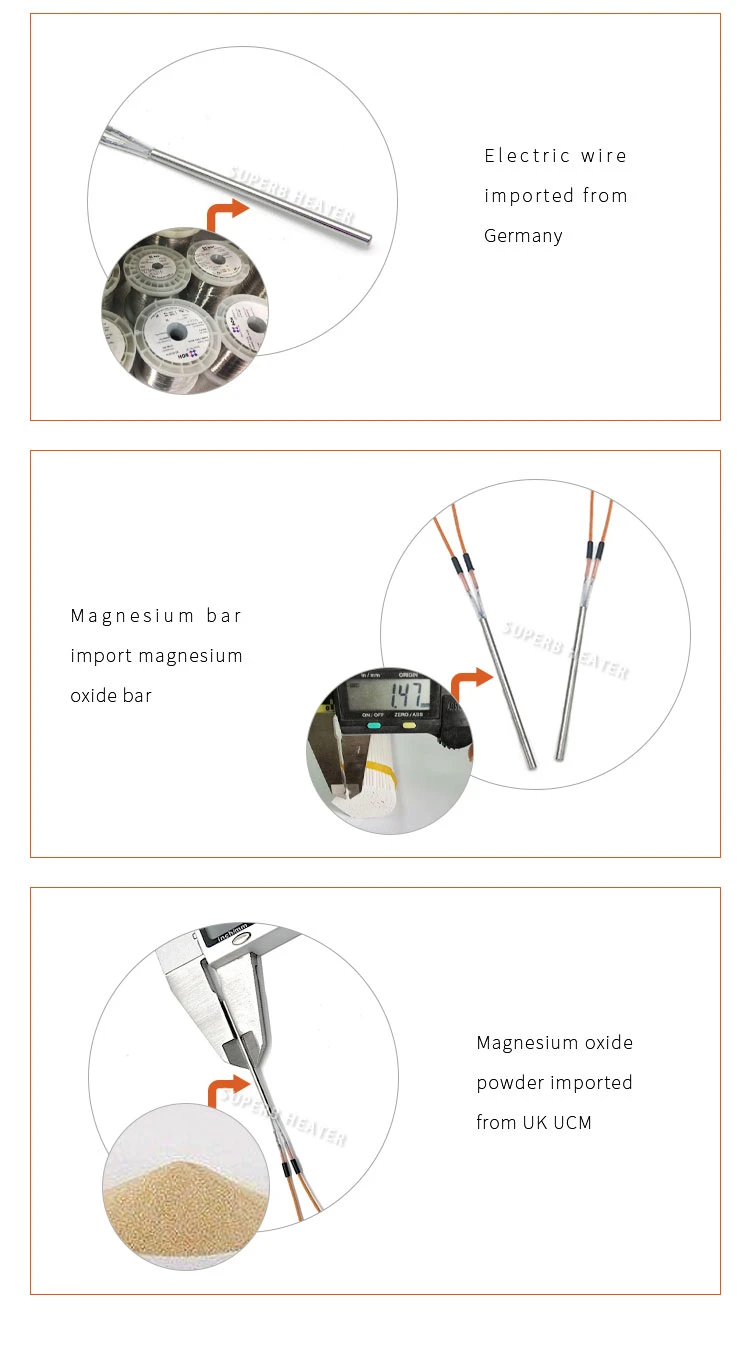

Cov txheej txheem tsim khoom ntawm lub tshuab cua sov yog los xov cov cua kub cua sov rau hauv lub raj tsis muaj steel hlau, lub raj tooj liab lossis txhuas raj, Sau qhov sib txawv nrog cov insulating thiab thermally conductive oxidizing nruab nrab xws li crystalline magnesium oxide hmoov (alumina los yog huv quartz xuab zeb tau kuj tseem siv tau) los ntawm kev siv ntau lub raj filling tshuab.Tom qab ntawd siv lub tshuab shrinking kom txo tau nws txoj kab uas hla kom cov oxide nruab nrab ntau compact. Los ntawm cov txheej txheem kev ua haujlwm no, cov nqi cua sov ntawm thaj chaw tiag tiag ntawm lub taub hau ib leeg yog nce. Piv nrog rau cov khoom siv hluav taws xob hluav taws xob nrog tib qhov loj ntawm cov cua sov, cov tubular hluav taws xob cua sov raj tuaj yeem txuag tau 5 feem pua ntawm cov khoom siv hluav taws xob cua sov, thiab cov thermal efficiency tuaj yeem ncav cuag ntau dua 90 feem pua.

Technical Details:

Thaum tshav kub kub siv	Tsis pub tshaj 30Wcm2 (tseem ceeb)
Hwj chim	Nyob ntawm qhov loj me
Kev khiav tawm tam sim no (thaum txias)	<=0.1mA a 242 v.
Rwb thaiv tsev (thaum txias)	5 Min Ohmios 500 Watts yam tsawg kawg nkaus
Dielectric zog	1500 v. 1/seg
Ua haujlwm kub	750ºG max.
Tolerance ntawm qhov ntev	ntxiv /-1.5 feem pua
Tolerance ntawm txoj kab uas hla	-0.01 a -0.06 m/m
Tolerance ntawm kev txiav ntawm connexion	plus /-15 mlm
Lub zog kam rau ua (w)	5 feem pua - 10 feem pua
Cov chaw txias	Nyob ntawm qhov ntev thiab txoj kab uas hla 5-25mm
