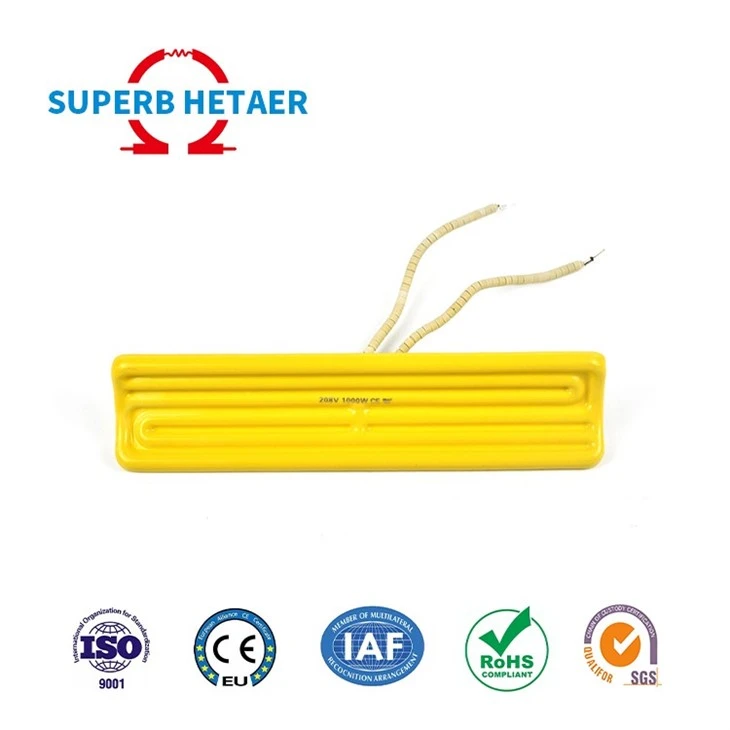

Industrial Commercial Infrared Ceramic Cua sov Element
Elstein deb infrared ceramic cua sov caij yog ceramic infrared radiators, uas yog tsim los rau kev khiav hauj lwm kub txog li 720 degree. Qhov ntsuas qhov siab txog 64 kW / m² tuaj yeem ntsia tau. Elstein deb infrared ceramic cua sov lub caij yog tsim los ntawm kev siv cov txheej txheem puv-tho casting ceramic thiab yog ...
Hauj lwm lawm
Khoom Taw Qhia:
Muaj kev lag luam kub kub Infrared Ceramic IR Rhaub Cua Sov Element
Ceramic integrated qauv nyob deb infrared hluav taws xob cua sov yog ib tug infrared radiator uas integrates lub impedance cua sov lub cev thiab ib tug ceramic txheej. Nws cov yam ntxwv yog tias cov txheej ceramic ua haujlwm ua cov khoom siv hluav taws xob, lub cev hloov hluav taws xob, thiab kev txhawb nqa lub cev rau lub impedance cua sov lub caij, ua kom cov cua sov tseem ceeb ua lub luag haujlwm hauv cov khoom siv cua sov infrared, xws li cov khoom siv thiab cov khoom sib txuas. Nws muaj ntau yam ntaub ntawv, tsis tshua muaj nqi, siab thermal efficiency, luv luv cua sov lub sij hawm, yuav ua tau lub teeb yuag thiab compact, thiab yuav siv tau nyob rau hauv qhov chaw nqaim. Cov khoom siv ntau lawm yog qhov yooj yim, cov khoom tsim tau siab, thiab nws tsim nyog rau cov chaw tsim khoom me me thiab nruab nrab kom muab tso rau hauv ntau lawm. Nws tuaj yeem ua kom yooj yim cov qauv ntawm ntau cov khoom siv cua sov infrared, txo lawv cov nqi, thiab tau txais kev siv ntau dua. Feem ntau, cov cua sov lub cev ntawm cov khoom tsim tam sim no tuaj yeem siv los hloov lub tshuab hluav taws xob.
Main technical parameter thiab khoom:
| 1. Rupture zog rau lub hauv paus lub cev: |
440 Kg / cm2 |
|
2.Resistance nyob rau hauv ntau qhov kub thiab txias: |
1012ohm ua0cm |
|
3.Property: zoo tshuaj stability; muaj zog causticity-ua hauj; zoo meej oxidation-ua hauj |
|
|
4.Heat poob hauv qhov chaw tsis muaj hluav taws xob tsawg |
|
|
5.Lub hauv paus lub cev yog rhuab mus rau 800 C thiab muab tso rau hauv dej txias dua rau kaum zaug thiab tsis muaj cracking. |
|
|
6.Cov khoom siv hluav taws xob yog cua sov tom qab hluav taws xob los ntsuas lub zog thiab muab tso rau hauv dej txias tom qab cuam tshuam ntawm lub zog hluav taws xob rau plaub caug zaug yam tsis muaj kev puas tsuaj. |
|
|
7.The max radiance of element>0.9 |
|
|
8.Cov nyhuv ntawm lub zog txuag tau pom tseeb, nce 10-25% piv nrog cov khoom siv silicon carbide |
|
|
9.Lub neej ncua sij hawm ntev tshaj li ob peb zaug piv nrog silicon carbide caij. |
|
Specification:
|
Loj (mm) |
Cov duab |
Lub zog (Kw) |
Loj (mm) |
Cov duab |
Lub zog (Kw) |
|
245×65 |
arc |
0.25-1.0 |
300×300×16 |
tiaj tus |
0.8-1.5 |
|
240×60 |
arc |
0.5-1.0 |
240×160×16 |
tiaj tus |
0.6-1.0 |
|
125×65 |
arc |
0.2-0.5 |
Φ70 |
disk |
0.1-0.2 |
|
120×60 |
tiaj tus |
0.1-0.325 |
Φ100 |
disk |
0.2-0.3 |
|
120×60 |
arc |
0.1-0.325 |
Φ140 |
disk |
0.3-0.4 |
|
120×120 |
tiaj tus |
0.1-0.8 |
Φ150×Φ100×Φ60 |
haf |
0.25-0.3 |
|
120×120 |
arc |
0.1-0.8 |
125×125 |
tiaj tus |
0.4-0.8 |
Feature
Far infrared ceramic heaters yog cov txheej txheem cua sov uas tsim kom muaj kev nqus ntawm resonance los ntawm kev siv lub ntuj zaus ntawm cov khoom molecules raug cua sov kom sib haum mus rau infrared wavelength nyob rau hauv cheeb tsam infrared. Piv nrog rau lwm cov cua sov txoj kev, lawv muaj ib tug series ntawm zoo nyob rau hauv cov cua sov uniformity, stability, thiab thermal efficiency. Hauv qhov xwm txheej tam sim no tsis muaj zog, cov cua sov infrared tau dhau los ua qhov tseem ceeb rau kev txuag hluav taws xob
Peb tuaj yeem tsim raws li cov neeg siv khoom tshwj xeeb.
Cov duab muaj xws li ib tug dub hollow core, ib tug disk, ib tug ca phaj, thiab ib tug arc.
Lub zog ntau: 100W-2000W (nyob ntawm qhov loj me).
Cov txheej txheem ntawm Kev Lag Luam Kev Lag Luam Infrared Ceramic Heating Element invention: siv cov khoom siv hluav taws xob kub-resistant thiab solidification molding, kub-resistant qhob nias thiab sintering molding, iav fiber ntau hnab wrapping molding, cua sov lub cev txuas nrog ceramic substrate molding, impedance cua sov hlau thiab iav fiber ntau sib xyaw weaving molding los tsim lub impedance cua sov lub cev thiab ceramic txheej integrated cua sov tub ntxhais, raws li lub ntsiab ntawm lub infrared hluav taws xob cua sov, cov yam ntxwv ntawm no cua sov tub ntxhais lub cev yog raws li nram no:
a. Cov txheej ceramic kuj tseem ua haujlwm raws li lub rwb thaiv tsev, lub cev hloov hluav taws xob, kev txhawb nqa lub cev, thiab kev teeb tsa substrate rau impedance cua sov.
b. Cov txheej txheem ceramic no muaj qee lub zog thiab nruj, thiab nws txoj kev tsim khoom thiab cov duab kawg ua rau nws ua lub luag haujlwm ntawm cov khoom siv, fasteners, thiab rwb thaiv tsev cov khoom hauv infrared cua sov, yog li ua kom yooj yim cov qauv ntawm tag nrho cov cuab yeej. Kev tsim thiab kev tsim qauv hauv feature b yog hais txog cov txheej txheem saum toj no xws li casting, solidification, mixing, and adhesion, as well as the process flow sequence of the forming process in the infrared device manufacturing process.
1. Yog vim li caskhoomyog li ntawdpheej yig?
A: Vim tias koj xaj ncaj qha los ntawm lub hoobkas.
2.Kuv tuaj yeem tau txais cov lus hais thiab cov lus qhia li cas?
A: Superb rhaub lub cua sov lub caij thiab kub sensor yog customized, tuaj yeem tsim raws li cov neeg xav tau.
3.Koj lub Hoobkas nyob qhov twg? Kuv tuaj yeem mus saib tau li cas?
A: Peb lub Hoobkas nyob hauv Dong guan City, Guangdong Province, Suav
4.Yuav ua li cas them nyiaj rau kojuamuaj?
A: TT thiab L / C tau txais, piv txwv li, lub koom haum sab hnub poob / nyiaj gram thiab Paypal muaj.
5.Kuv tuaj yeem tau txais qee qhov qauv?
A: Cov qauv muaj, tsuas yog hu rau kuv.
6.Koj lub Hoobkas ua li cas txog kev tswj xyuas zoo?
A: Superb rhaub muaj ntau tshaj 30 xyoo dhau los rau cov khoom cua sov, qhov zoo yog pov thawj los ntawm CE, ROHS thiab lwm yam ntawv pov thawj zoo.
