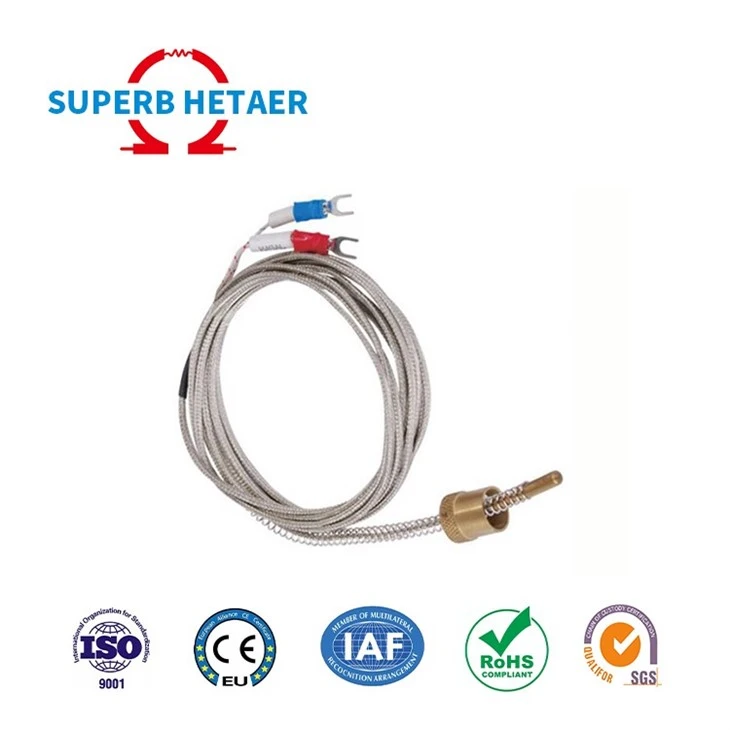

Stainless Hlau Armored Thermocouple Nrog Cov Hlau Hlau

Thermocouple
Lub thermocouple yog ib qho khoom siv ntsuas kub uas muaj ob qhov sib txawv ntawm cov conductors uas sib cuag ntawm ib lossis ntau qhov chaw. Nws tsim ib qho hluav taws xob thaum qhov kub ntawm ib qho ntawm qhov sib txawv ntawm qhov ntsuas kub ntawm lwm qhov hauv Circuit Court. Thermocouples yog ib hom kev siv dav dav rau kev ntsuas thiab tswj, thiab tuaj yeem hloov pauv qhov kub thiab txias rau hauv hluav taws xob. Kev lag luam thermocouples yog pheej yig, hloov pauv tau, tau muab nrog cov qauv sib txuas, thiab tuaj yeem ntsuas ntau qhov kub thiab txias. Nyob rau hauv sib piv rau feem ntau lwm txoj kev ntsuas kub, thermocouples yog tus kheej powered thiab yuav tsum tsis muaj lwm yam excitation.



Hom thermocouple core
Khoom siv Hom	ceg	tub ntxhais khoom	Leg dia		TIAB SA 1602		ANSI
			JIS	ANSI	Max.ua haujlwm temp. Hauv ib txwm daim ntawv thov (ºC)	Max.ua haujlwm temp. Nyob rau hauv overheated daim ntawv thov (ºC)	Max.operaring temp. (ºC)
B	+	Platinum 70% + rhodium 30%	0.5	0.5	1500	1700	1700
	-	Platinum 94% + rhodium 6%	0.5	0.5
R	+	Platinum 87% + rhodium 13%	0.5	0.5	1400	1600	1480
	-	siab purity platinum	0.5	0.5
S	+	Platinum 90% + rhodium 10%	0.5	0.5
	-	siab purity platinum	0.5	0.5
K	+	Nickel 90% + chromiun 10% Nickel 95% + Manganese 2% + Aluminium 2%	3.2	3.2	1000	1200	1260
			2.3	1.6	900	1100	1090
			1.6	0.8	850	1050	980
			1	0.5	750	950	870
			0.65	0.32	650	850	870
E	+ -	Nickel 90% + chromiun 10% Tooj liab 55% + Nickel 45%	3.2	3.2	700	800	870
			2.3	1.6	600	750	650
			1.6	0.8	550	650	540
			1	0.5	500	550	430
			0.65	0.32	450	550	430
J	+ -	high purity hlau Tooj liab 55% + Nickel 45%	3.2	3.2	600	750	760
			2.3	1.6	550	750	590
			1.6	0.8	500	650	480
			1	0.5	450	650	370
			0.65	0.32	400	500	370
T	+ -	siab purity tooj liab Tooj liab 55% + Nickel 45%	1.6	1.6	300	350	370
			1	0.8	250	300	260
			0.65	0.5	200	250	200
			0.32	0.32	200	250	200
Ntxiv rau qhov saum toj no, cov thermocouples tshwj xeeb xws li L hom, C hom (W-W26% Re), Cu-CoAu thiab lwm yam, muaj
