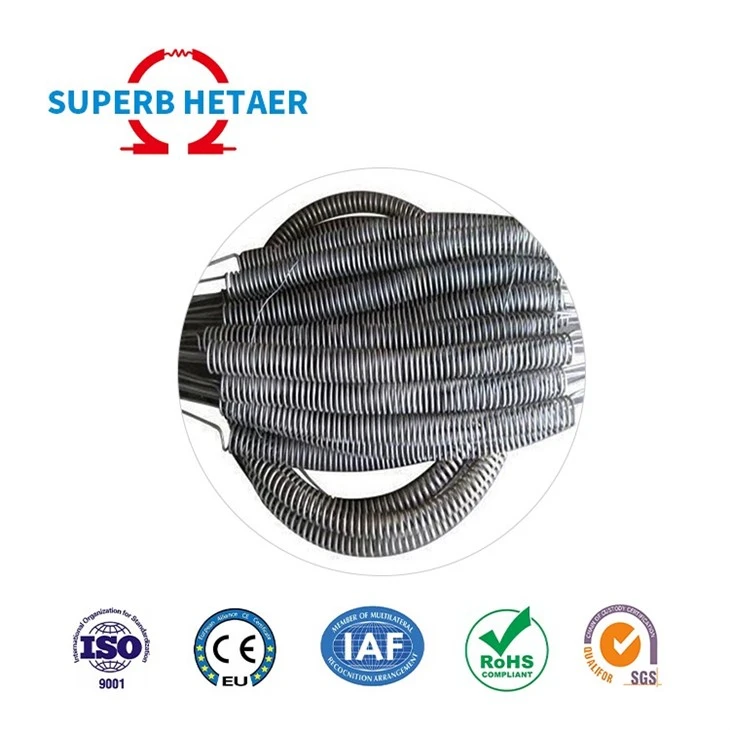

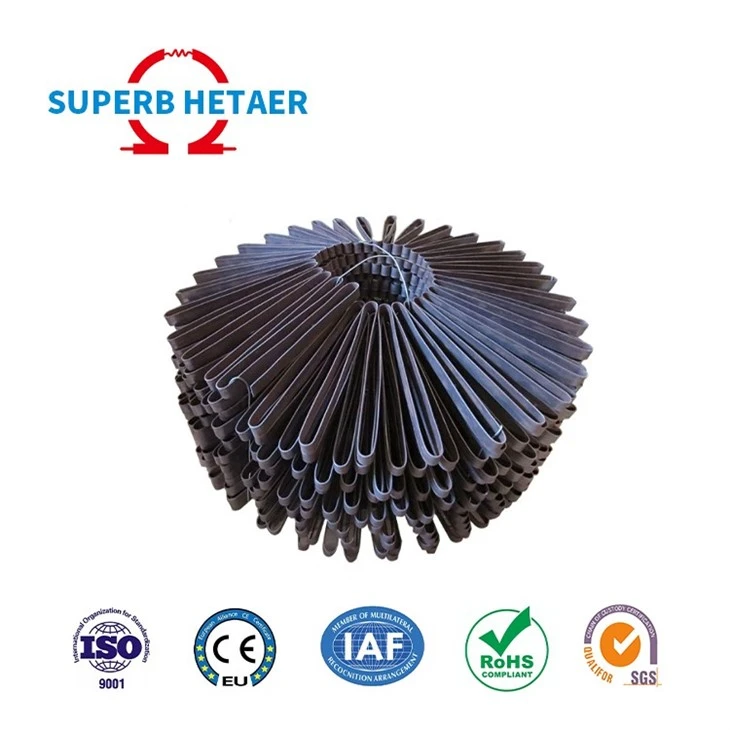

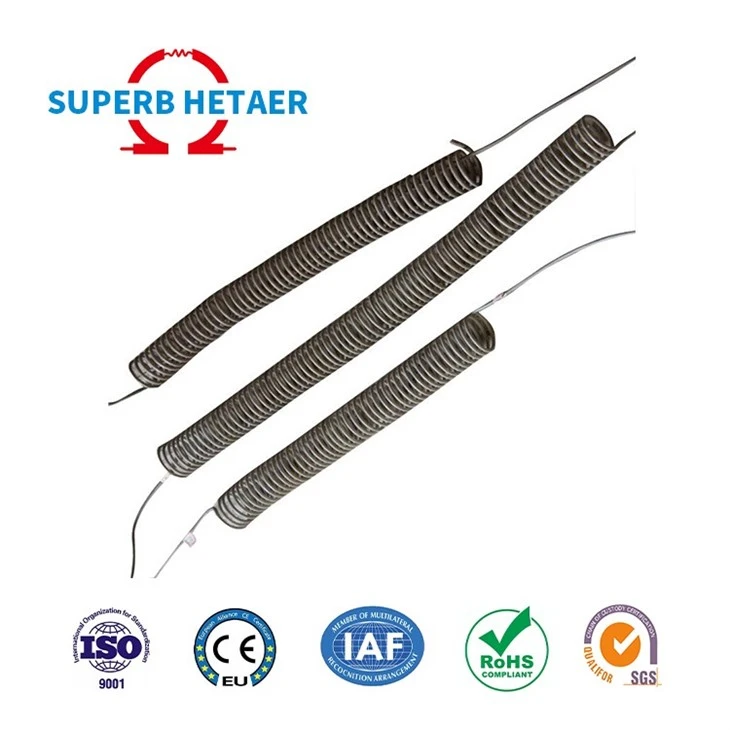

Nichrome 8020 Ni80cr20 Material For Furnace Resistance Spiral Wire
Nichrome 8020 Ni80cr20 Material For Furnace Resistance Spiral Wire
Nichrome 8020 Ni80cr20 Material For Furnace Resistance Spiral Wire
Nichrome 8020 Ni80cr20 Material For Furnace Resistance Spiral Wire
Nichrome 8020 Ni80cr20 Material For Furnace Resistance Spiral Wire
Nichrome 8020 Ni80cr20 Cov Khoom Siv Rau Cov Hluav Taws Xob Resistance Kauv Hlau
Lub superalloy hluav taws xob rauv hlau uas tsim los ntawm peb lub tuam txhab yog tsim rau txhua yam kub kub industrial furnaces xws li aluminium alloy hluav taws xob melting rauv, ceramic kiln, Enamel kiln, trolley rauv, zoo rauv thiab hais txog. Cov ntaub ntawv alloy feem ntau yog nickel-chromium thiab ...
Hauj lwm lawm
Product Description
Zoo zoo nichrome 8020 ni80cr20 khoom rau lub cub tawg kuj kauv hlau cua sov caij
1Cr13Al4, 0Cr19Al3, 0Cr25Al5, 0Cr23Al5, 0Cr21Al6, 0Cr21Al4, 0Cr21Al6Nb, 0Cr27Al7Mo2 yog ib yam khoom siv ntawm Fe-Cr-Al alloy.
FeCrAl alloy muaj cov yam ntxwv ntawm kev ua haujlwm siab, tsis tshua muaj qhov kub thiab txias coefficient, kev ua haujlwm siab kub, zoo oxidation thiab tiv thaiv corrosion nyob rau hauv kub.
Nws yog dav siv nyob rau hauv industrial furnace, khoom siv hauv tsev, kev lag luam rauv, metallurgy, machinery, aircraft, automotive,
thiab lwm yam lag luam uas tsim cov khoom cua sov thiab cov khoom tiv thaiv.
Product Description
| Alloy Nomenclature Performance | 1Cr13AL4 | 0Cr25Al5 | 0Cr21AL6 | 0Cr23Al5 | 0Cr21Al4 | 0Cr21Al6Nb | 0Cr27Al7Mo2 | |
| Cr | 12.0-15.0 | 23.0-26.0 | 19.0-22.0 | 20.5-23.5 | 18.0-21.0 | 21.0-23.0 | 26.5-27.8 | |
| Al | 4.0-6.0 | 4.5-6.5 | 5.0-7.0 | 4.2-5.3 | 3.0-4.2 | 5.0-7.0 | 6.0-7.0 | |
| Main tshuaj muaj pes tsawg leeg | Re | muaj caij nyoog | muaj caij nyoog | muaj caij nyoog | muaj caij nyoog | muaj caij nyoog | muaj caij nyoog | muaj caij nyoog |
| Fe | So | So | So | So | So | So | So | |
| Nb0.5 | Mo1.8-2.2 | |||||||
| Max. kev pabcuam temp. cov khoom (ºC) | 950 | 1250 | 1250 | 1250 | 1100 | 1350 | 1400 | |
| Resistant ntawm 20ºC (μΩ / m) | 1.25 | 1.42 | 1.42 | 1.35 | 1.23 | 1.45 | 1.53 | |
| Qhov ceev (g / cm3) | 7.4 | 7.1 | 7.16 | 7.25 | 7.35 | 7.1 | 7.1 | |
| Thermal conductivity (KJ / mhºC) | 52.7 | 46.1 | 63.2 | 60.2 | 46.9 | 46.1 | -- | |
| Coefficient ntawm kab nthuav dav (*10-6/ºC) | 15.4 | 16 | 14.7 | 15 | 13.5 | 16 | 16 | |
| Melting point approx. (ºC) | 1450 | 1500 | 1500 | 1500 | 1500 | 1510 | 1520 | |
| Tensile zog (N / mm2) | 580-680 | 630-780 | 630-780 | 630-780 | 600-700 | 650-800 | 680-830 | |
| Elongation ntawm rupture (%) | >16 | >12 | >12 | >12 | >12 | >12 | >10 | |
| Variation ntawm cheeb tsam (%) | 65-75 | 60-75 | 65-75 | 65-75 | 65-75 | 65-75 | 65-75 | |
| Rov ua dua Bending zaus (F / R) | >5 | >5 | >5 | >5 | >5 | >5 | >5 | |
| Hardness (HB) | 200-260 | 200-260 | 200-260 | 200-260 | 200-260 | 200-260 | 200-260 | |
| Lub sijhawm ua haujlwm tas mus li (teev / ºC) | -- | Ntau dua lossis sib npaug li 80/1300 | Ntau dua lossis sib npaug li 80/1300 | Ntau dua lossis sib npaug li 80/1300 | Ntau dua lossis sib npaug li 80/1250 | Ntau dua lossis sib npaug li 50/1350 | Ntau dua lossis sib npaug li 50/1350 | |
| Micrographic qauv | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | |
| Cov khoom sib nqus | Sib nqus | Sib nqus | Sib nqus | Sib nqus | Sib nqus | Sib nqus | Sib nqus | |
Khoom siv
Cov ntawv pov thawj
FAQ
Q: Koj puas yog tuam txhab lag luam lossis chaw tsim khoom?A: Peb yog cov chaw tsim khoom tshwj xeeb hauv Kev Lag Luam Cov Khoom Siv Hluav Taws Xob. Thiab peb pauv peb cov khoom nrog peb cov neeg siv khoom ncaj qha.
Q: Koj puas tuaj yeem ua OEM thiab ODM?
A: Yog, OEM thiab ODM yog ob qho tib si txais. Cov khoom siv, xim, style tuaj yeem hloov kho, qhov yooj yim kom muaj nuj nqis peb yuav qhia tom qab peb sib tham.
Q: Peb puas tuaj yeem siv peb lub logo?
A: Yog lawm, peb tuaj yeem luam koj tus kheej lub logo raws li koj qhov kev thov.
Q: Muaj pes tsawg hom khoom koj lub tuam txhab tsim?A: Tam sim no peb muaj ntau tshaj 1, 000 cov khoom. Peb muaj qhov zoo ntawm OEM, tsuas yog muab peb cov khoom tiag lossis koj lub tswv yim uas koj xav tau, peb yuav tsim rau koj.
Q: Thaum twg kuv tuaj yeem tau txais tus nqi?
A: Feem ntau peb hais hauv 24 teev tom qab peb tau txais koj qhov kev nug.
Q: Koj tus MOQ yog dab tsi?
A: Yog tias peb muaj cov khoom hauv Tshuag, nws yuav tsis muaj MOQ. Yog tias peb xav tau tsim, peb tuaj yeem tham txog MOQ raws li tus neeg siv khoom qhov xwm txheej.
Q: Koj lub sijhawm xa khoom ntev npaum li cas?A: Lub sijhawm xa khoom dav dav yog 2 lub lis piam tom qab tau txais koj daim ntawv lees paub. Ib qho ntxiv, yog tias peb muaj cov khoom hauv Tshuag, nws tsuas yog siv sijhawm ntau tshaj ib lub lis piamQ: Koj puas muab cov qauv? Puas yog dawb?A: Yog tias tus qauv qis qis, peb yuav muab cov qauv dawb nrog cov khoom thauj. Tab sis rau qee cov qauv nqi siab, peb yuav tsum tau sau cov qauv nqi.
Q: Koj lub sijhawm them nyiaj yog dab tsi?
A: 30% tso nyiaj them ua ntej ua ntej thiab 70% tshuav nyiaj them ua ntej xa khoom.
Q: Daim ntawv them nqi twg koj tuaj yeem txais?
A: T / T, Western Union, PayPal thiab lwm yam. Peb lees txais txhua lub sijhawm them nyiaj yooj yim thiab nrawm.
